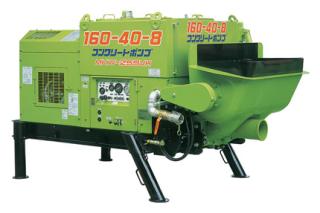

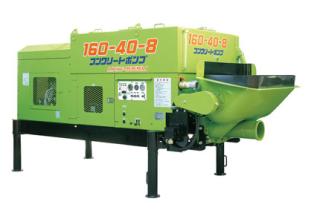

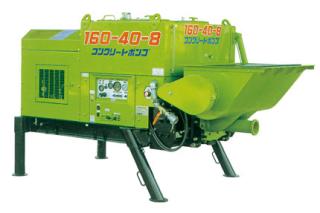

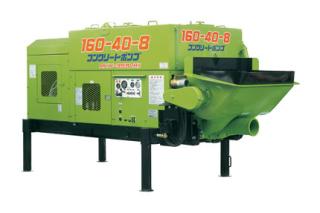

SYMTEC “160-40-8” Concrete Pump is;

  • Concrete flows constantly into cylinder from bottom of hopper, which shall enable to get high suction efficiency. Air intrusion shall be shut out by polyurethane packing.
  • Our concrete pump has parallel twin cylinder mechanism (no Y shape or S shape pipe), which shall make concrete push out straight in beeline. There is no change of cross section space, shape, and direction of concrete flow, which shall reduce discharge resistance.
  • High suction efficiency, air tightness and low discharge resistance avoid paste separation and air Intrusion, then it makes little change of properties of concrete.


Therefore, our “160-40-8” Concrete Pump is;


That it is available to transmit the concrete, [nominal strength 18N/ mｍ2(180kg/cm2), 8cm slump, max. aggregate size 40mm].

SYMTEC Concrete Pump would work for pumping of various type of materials such as high consistency materials, mud, water, mortar, light weight mortar, light weight concrete and heavy weight concrete.

Movie explaining the mechanism of the Pump

Mechanism of the “160-40-8” Concrete Pump could be seen on motion picture.



Movie explaining the feature of the Pump

  • ■Hard Material
    Slope Protection Spraying
    Watch Movie（Youtube） The material of 1:4 mortar, slump 2 cm or more could be used for spraying.
  • 　
    Sharp Slant
    Watch Movie（Youtube） The Material of 40 mm aggregate concrete, slump 5 cm or more could be used for spraying.
  • ■High Consistency Material
    Amorphous Refractory Material Spray
    Watch Movie（Youtube）


Product Line-up


Stationary 5 m3 Type

Stationary 7 m3 type

Stationary 10 m3 type

Stationary 25 m3 type

Stationary 35 m3 type

Stationary 55 m3 type
