Stationary 55 m3 type
Features
- While this type is compact size, weight less than 3t, this type achieved pumping capacity 55m3/h.
- Inside diameter of concrete cylinder of the machine is big as 180m/m, then it is available pumping low slump, less than 8 cm concrete or low fluidity material.
- It is used for various type of applications such as civil construction, inner lining of tunnel , fluidity treatment, pumping of mud soil.
Specifications
MKW−55SVH ▼ |
||
|---|---|---|
| Type | Stationary Diesel Engine | |
| Output max.theor. | 10～55㎥/h | |
| Front Pressure of Concrete Piston | 4.26MPa (43.4kgf/㎠) | |
| Maximum Aggregate Size | 40㎜ | |
| Diameter of Delivery Port | 175㎜ | |
| Pumping System | Hydraulic 2-Piston system | |
| Valve System | Parallel sliding type | |
| Material Cylinder | φ 180㎜ × Stroke 900㎜ | |
| Hopper | Structure | Hydraulic Opening and closing system |
| Capacity | 0.2㎥ | |
| Height | 1112㎜ (include 4 Legs) ・ 649㎜ (not include 4 Legs) | |
| Agitator | Hydraulic Motor system (normal･stop･reverse_rotation) There are the type of Automatic stop device. |
|
| Power | Diesel Engine ( 4-cylinder ) ( water-cooling ) | |
| 78.1kW/2000rpm | ||
| Fuel Tank | 75L | |
| Hydraulic Oil Tank | 320L | |
| Lubrication Oil Tank | 30L (for Material Cylinder Cleaning) | |
| Machine Size | L 3537㎜ × W 1522㎜ × H 1809㎜ (include 4 Legs) | |
| Gross Weight | 2930㎏ (include Hydraulic Oil) | |
MKW−55SM ▼ |
||
|---|---|---|
| Type | Stationary Electric Motor High Pressure | |
| Output max.theor. | 2 type : 10～55㎥/h (60Hz) and 8.5～55㎥/h (50Hz) | |
| Front Pressure of Concrete Piston | 4.26MPa (43.4kgf/㎠) | |
| Maximum Aggregate Size | 40㎜ | |
| Diameter of Delivery Port | 175㎜ | |
| Pumping System | Hydraulic 2-Piston system | |
| Valve System | Parallel sliding type | |
| Material Cylinder | φ 180㎜ × Stroke 900㎜ | |
| Hopper | Structure | Hydraulic Opening and closing system |
| Capacity | 0.2㎥ | |
| Height | 1112㎜ (include 4 Legs) ・ 649㎜ (not include 4 Legs) | |
| Agitator | Hydraulic Motor system (normal･stop･reverse_rotation) There are the type of Automatic stop device. |
|
| Power | Electric Motor (Star-Delta Starting Method) | |
| 55kW | ||
| 4P ･ 200V (50Hz / 60Hz) | ||
| Fuel Tank | - | |
| Hydraulic Oil Tank | 320L | |
| Lubrication Oil Tank | 30L (for Material Cylinder Cleaning) | |
| Machine Size | L 3487㎜ × W 1522㎜ × H 1809㎜ (include 4 Legs) | |
| Gross Weight | 2930㎏ (include Hydraulic Oil) | |
Note: Specifications and the other contents on this catalogue are subject to change without prior notice due to design revision.
Performance Diagram

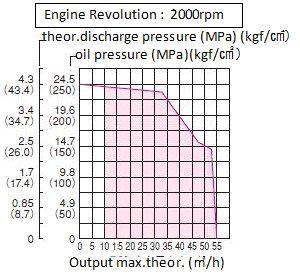

MKW-55SVH

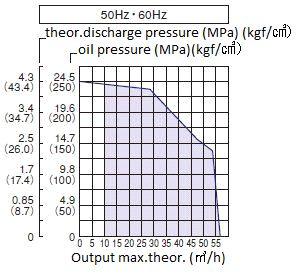

MKW-55SM
Outside Dimension
MKW-55SVH
MKW-55SM
